Commercial Playground Hardware Made Easy...

Select from the following playground hardware options and configurations for commercial swing sets.
Beam Swing Hanger
Pipe Swing Hanger
Swing Fastener
Tools
Handles
Tire Swing
Steering Wheel
Swing Chain
Playground Hardware Selection:

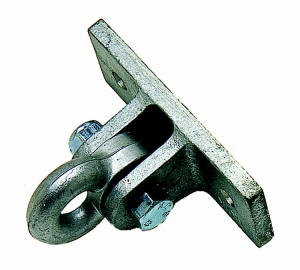

swing set hardware featured

pdf icon  View / Print
Swing Set Hardware Specifications

We offer a complete line of playground equipment hardware and parts for swing sets including Swing Hangers for metal and wooden swing beam, Tire Swivel, and Metal Swing Set Brackets. Our featured playground hardware:


swing hangers pipe swing hangers playground handles replacement pendulum s-hooks galvanized clevis
s hook tool metal steering wheel tire swivels swing set chains


• Playground Swings
• Swing Set Hardware
• Swing Sets
• Playground Slides
• Freestanding Slides
• Water Slides
• Play Structures
• Indoor Playgrounds
• Tunnels & Tubes
• Panels & Roofs
• Climbing Activities
• Spring Animals
• Decks & Bridges
• Early Childhood Play
• Sand & Water Play
• Site Amenities
• Shade Structures
• Playground Surfacing
• Playground Colors
• Information
• Contact Us
• Site Map
BBB Accredited

Beam Swing Hangers
Description Cost Each Image Your Order
Ductile Iron Beam Hanger
Galvanized ductile iron swing hanger with steel pivot and bronze bushing. 2lbs.		 $11.75 ductile iron beam swing set hangers Qty.
(6) for $65.00 Qty.
Pipe Swing Hangers
Description Cost Each Image Your Order
Ductile Iron Pipe Hanger
2-3/8" Galvanized ductile iron swing hangers with steel pivot bolt and bronze bushing. Choice of loop or clevis model. 2lbs.		 $17.50 metal pipe swing hangers Qty.
2-3/8"
(6) for $100.00		 Qty.
3-1/2" Galvanized ductile iron swing hangers with steel pivot bolt and bronze bushing. Choice of loop or clevis model. 4lbs. $23.00 Qty.
3-1/2"
(6) for $130.00		 Qty.
Description Cost Each Image Your Order
Stamped Steel Pipe Hanger
2-3/8" Galvanized stamped steel swing hanger with steel pivot bolt and bronze bushing. 2lbs.		 $16.50 metal pipe swing hanger Qty.
2-3/8"
(6) for $95.00		 Qty.
3-1/2", 4-1/2", 5"
Galvanized stamped steel swing hanger with steel pivot bolt and bronze bushing. 4lbs.		 $22.00 Qty.
(6) for $125.00 Qty.
Description Cost Each Image Your Order
Replacement Pendulum
This replacement pendulum includes bronze bushing and fits both stamped steel and ductile iron swing hangers. Choice of loop or clevis model. Measure existing swing hanger and bolt dimensions before ordering, pendulums are designed for use with 7/16" bolt diameter. Pendulum dimensions, Width at top:15/16", Hole diameter: 0.48", 10oz.		 $7.25 swing pendulum Qty.
(6) for $40.00 Qty.
Swing Fasteners
Description Cost Each Image Your Order
S-Hook
ZINC PLATED 3/8" diameter zinc plated s-hook. 3oz.		 $0.80 s hook hardware Qty.
ZINC PLATED LARGE LOOP 3/8" diameter zinc plated large loop s-hook handles most swings. 4oz. $0.90 s-hook fastener Qty.
GALVANIZED LARGE LOOP 3/8" diameter galvanized large loop s-hook handles most swings. 4oz.
 $1.05 galvanized hardware Qty.
Description Cost Each Image Your Order
Galvanized Clevis
SINGLE Galvanized clevis are an alternative to s-hooks and provide a secure, tamper-resistant connection. Use single clevis to connect chain to swing hangers or seats as alternative to s-hooks. Clevis key included. Inside width at bolt: 1/2". Inside width center loop: 7/8". 7/16" bolt diameter. 3oz.		 $4.50 clevis chain hanger connectors Qty.
(6) for $25.00 Qty.
DOUBLE Galvanized clevis are an alternative to s-hooks and provide a secure, tamper-resistant connection. Use double clevis to connect chain to swing hangers seats or plastic tires. Clevis key included. Inside width larger side: 7/8". Inside width smaller side: 3/8". 7/16" bolt diameter. 7oz. $5.75 double clevis connector Qty.
(6) for $30.00 Qty.
Tools
Description Cost Each Image Your Order
S-Hook Tool
The perfect tool for opening and closing s-hooks. Increased length for increased leverage. 31" long, 12lbs.
 $135.00 s-hook tool Qty.
Handles
Description Cost Each Image Your Order
C Grab Handle
12" tall handle is easy to attach with two included WRC wood receivers. Formed from 1-1/4" tubing. 6lbs.		 $115.00 playground handles Qty.
(6) for $625.00   Qty.
Description Cost Each Image Your Order
D Handle
Formed from 1-3/8" tubing with welded tab brackets for easy mounting.		 $40.00 playground handle Qty.
(6) for $210.00   Qty.
Tire Swing
Description Cost Each Image Your Order
Extra Heavy Duty Tire Swivel
Tire swivel design features rubber boot over universal joint, grease fitting for easy maintenance, and three point mounting system. Comes in flat plate for wood beam (shown right) and in three pipe mount top bar dimensions (shown below). 10lbs.		 $159.00 heavy duty tire swing swivel hardware Qty.
(6) for $845.00 tire swivel Qty.
Description Cost Each Image Your Order
Heavy Duty Tire Swivel
Tire swivel design features rubber boot over universal joint, grease fitting for easy maintenance, and three point mounting system. 8lbs.		 $139.00 tire swing swivel Qty.
(6) for $735.00   Qty.
Description Cost Each Image Your Order
Tire Eye Bolts
Turn any tire into a tire swing with this set of three tire eye bolts, washers, and nylon insert lock nuts. 2lbs.		 $19.95 tire swing eye bolts Qty.
(6) for $105.00   Qty.
Steering Wheels
Description Cost Each Image Your Order
Solid Offset Steering Wheel
12-3/8" diameter cast aluminum steering wheel is also offset by 2-1/2". Powder coated finish includes brass bushing. 6lbs.		 $82.50 commercial steering wheels Qty.
(6) for $425.00   Qty.
Description Cost Each Image Your Order
Plastic Steering Wheel
13" diameter rotationally molded design that features no openings. 3lbs.		 $47.50 plastic steering wheel Qty.
(6) for $265.00   Qty.
Swing Chain
Note: Chain can be factory-attached to swing seats on order using s-hooks unless otherwise specified. Order (2) chains per seat and we will match, or email info@detailedplaypro.com with specific instructions. S-hooks for chain-to-seat assembly are included with swing seat and chains order, swing hangers and chain-to-hanger fasteners are not included with swing seat and chains orders.
Description Cost Each Image Your Order
Plastisol Coated, Half Length
8FT beam, 5-1/2ft total length with lower 30" coated, 3/16" welded steel link, zinc plated chain. 2.5lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $13.85
per chain		 plastisol pvc coated swing chains Qty.
(12) for $155.00   Qty.
10FT beam, 8-1/2' total length with lower 30" coated, 3/16" welded steel link, zinc plated chain. 3lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $18.95
per chain		 Qty.
(12) for $215.00   Qty.
Description Cost Each Image Your Order
Galvanized 4/0
Heavy Duty - 3/16" Link
8FT beam, 6' total length. Hot dipped galvanized playground chain, 3/16" welded steel link. 3lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $10.95
per chain		 galvanized swing chains Qty.
(12) for $115.00   Qty.
10FT beam, 8' total length. Hot dipped galvanized playground chain, 3/16" welded steel link. 4lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $14.50
per chain		 Qty.
(12) for $155.00   Qty.
BULK Uncut, Hot dipped galvanized playground chain, per foot, 3/16" welded steel link. 6oz.
 $1.55/ft
1-99ft

$1.40/ft
100-249ft

$1.25/ft
250+ft		 $1.00/cut for special cut lengths. Specify cut lengths in Comments field at checkout. Special cuts are not returnable for credit.
1-99
100-249
250+
Cuts
Enter Total Feet & Cuts
Description Cost Each Image Your Order
Galvanized 5/0
Extra HD - 1/4" Link
8FT beam, 6' total length. Hot dipped galvanized playground chain, 1/4" welded steel link. 4.5lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $13.95
per chain 		Galvanized 4/0 - 3/16" link
galvanized swing chains
Galvanized 5/0 - 1/4" link 		Qty.
(12) for $155.00   Qty.
10FT beam, 8' total length. Hot dipped galvanized playground chain, 1/4" welded steel link. 6lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $18.50
per chain 		Qty.
(12) for $205.00   Qty.
BULK Uncut, Hot dipped galvanized playground chain, per foot, 1/4" welded steel link. 9oz.
 $2.15/ft
1-99ft

$2.00/ft
100-249ft

$1.85/ft
250+ft		 $1.00/cut for special cut lengths. Specify cut lengths in Comments field at checkout. Special cuts are not returnable for credit.
1-99
100-249
250+
Cuts
Enter Total Feet & Cuts
Description Cost Each Image Your Order
Soft Grip Coated, Half Length
8FT beam, 5-1/2ft total length 4/0 chain with lower 32" soft grip coated, 3/16" welded steel link, zinc plated chain. 3lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $17.95
per chain		 soft grip coated swing chains Qty.
(12) for $205.00   Qty.
Description Cost Each Image Your Order
Plastisol Coated, Full Length
8FT beam, 68" total length with coating all the way up the chain. S-hooks integrated into the coating on both ends. Chains can be fastened to seats in factory. S-hook tool required to fasten full coated chains to swing hangers, 3/16" welded steel link. 4lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $24.95
per chain		 full length coated swing chains
Note: S-hooks integrated into coating of full coated chains do not fit on Belt Seat (no exposed hw), use Belt Seat w/ Triangle Hardware or Half Coated Chain.		 Qty.
  (12) for $280.00   Qty.
10FT beam, 92" total length with coating all the way up the chain. S-hooks integrated into the coating on both ends. Chains can be fastened to seats in factory. S-hook tool required to fasten full coated chains to swing hangers, 3/16" welded steel link. 6lbs.

Note: Order (2) per Swing Seat for assembled Swing.		 $26.95
per chain		 Qty.
(12) for $300.00   Qty.
